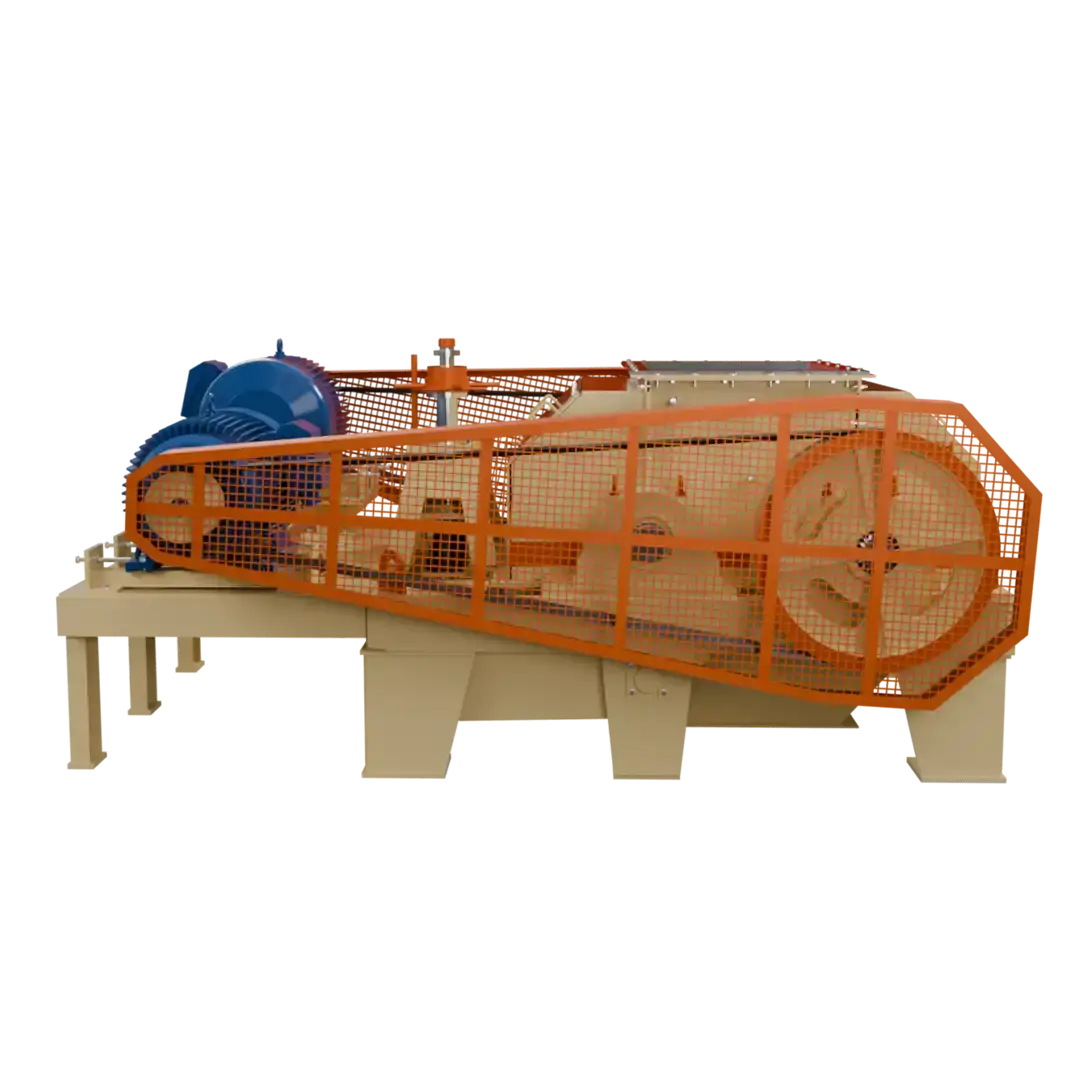

The Mechtech Roll Crusher is engineered for efficient and controlled size reduction of various materials. With its robust construction, precision-engineered crushing mechanism and optimized roll configuration, it delivers uniform product sizing with reliable performance across demanding applications.
Play
Video
With Mechtech, every roll crusher is built around precision, durability, and controlled material reduction. From the crushing chamber to the final discharge, every detail is engineered to deliver consistent results.
Precisely designed crushing rolls provide controlled material reduction and consistent product sizing, ensuring reliable performance across continuous operations.
Know more
The crushing mechanism is designed to effectively grip and reduce material while maintaining a controlled crushing process for smooth and efficient operation.
Know more
From roller design to the bearing and spring assemblies, every component of the Mechtech SDRC Series Roll Crusher is engineered for controlled size reduction, consistent output, and dependable crushing performance.
Know more
Built with robust components to withstand demanding operating conditions, the Roll Crusher delivers dependable performance and long service life.
Know more
The optimized roll configuration helps achieve consistent particle size and controlled reduction, making the crusher suitable for applications requiring uniform output.
Know more
The integrated tramp release mechanism allows the crusher to respond to uncrushable material, helping protect critical components and minimize potential damage.
Know more

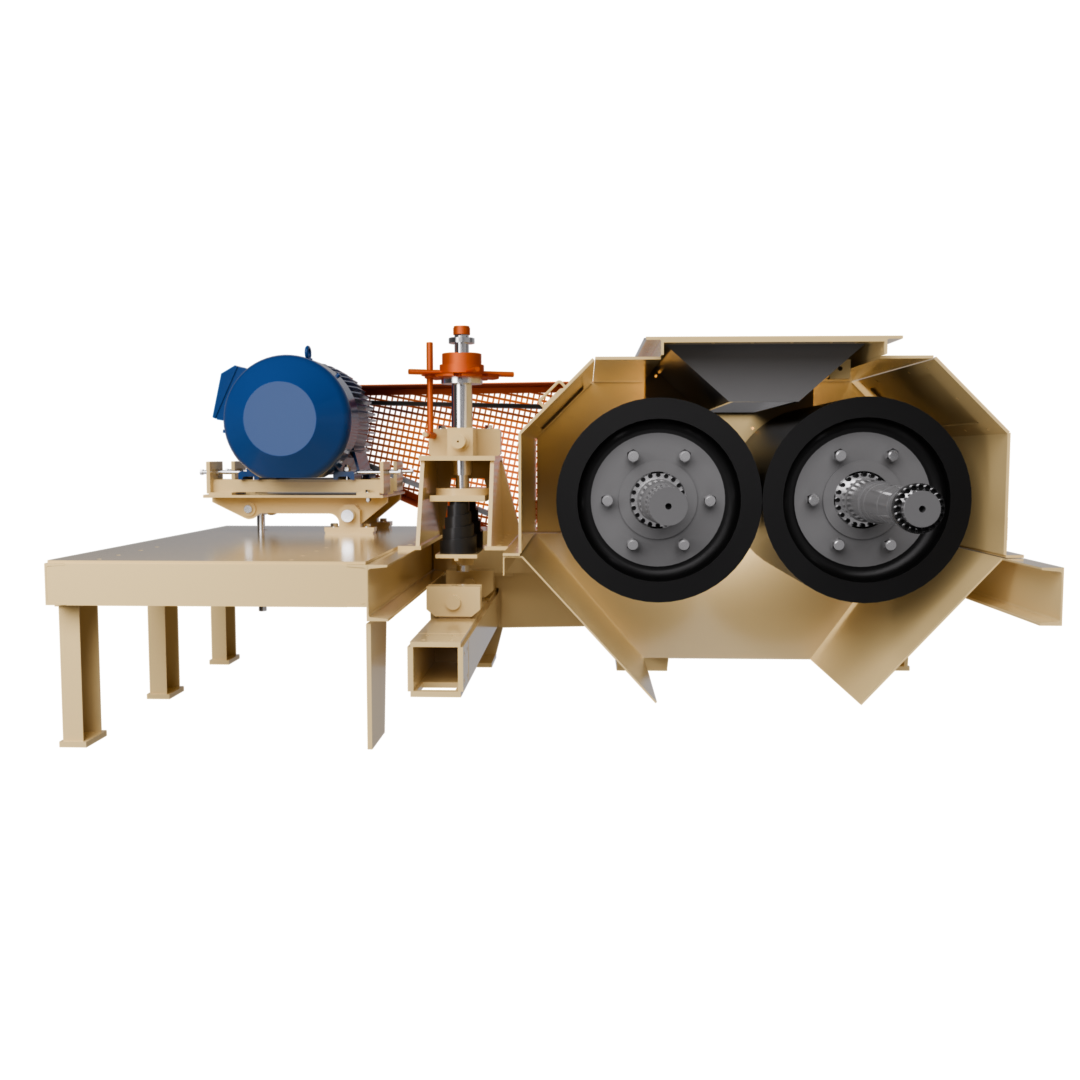

The counter-rotating rollers apply compressive force to incoming material, reducing larger particles into smaller, more uniform sizes for efficient and controlled crushing.
Know more
Heavy-duty components and a robust frame are designed to withstand high crushing loads and demanding operating conditions.
Precisely engineered rolls deliver controlled compression, helping achieve consistent particle size and uniform product output.
The integrated tramp release mechanism allows uncrushable material to pass through, helping protect critical components and reduce potential damage.
The adjustable roll setting provides greater control over the final product size, allowing the crusher to adapt to specific application requirements.
The synchronized movement of the rolls ensures efficient material gripping and controlled reduction for smooth, continuous crushing.
Designed for easy access to key components, simplifying inspection, servicing, and replacement while helping minimize downtime
Need more info? Please have a look at the tech specs of the watch. We’ve used latest machine & quality materials
| MODEL | ROLL DIAMETER (MM) | ROLL WIDTH (MM) | MAX FEED SIZE (MM) | MAX POWER (HP) |
|---|---|---|---|---|
| SDRC 6040 | 600 | 400 | 20 | 15x2 nos. |
| SDRC 6060 | 600 | 600 | 20 | 20x2 nos. |
| SDRC 8040 | 800 | 400 | 30 | 20x2 nos. |
| SDRC 8060 | 800 | 600 | 30 | 30x2 nos. |
| SDRC 8080 | 800 | 800 | 30 | 40x2 nos. |
| SDRC 8010 | 800 | 1000 | 30 | 60x2 nos. |
| SDRC 1060 | 1000 | 600 | 50 | 40x2 nos. |
| SDRC 1080 | 1000 | 800 | 50 | 50x2 nos. |
| SDRC 1010 | 1000 | 1000 | 50 | 60x2 nos. |
| SDRC 1012 | 1000 | 1200 | 50 | 100x2 nos. |
| SDRC 1212 | 1200 | 1200 | 80 | 120x2 nos. |
| SDRC 1414 | 1400 | 1400 | 100 | 150x2 nos. |
Note: All the above technical details may vary at any stage of the engineering process and design development.
Watch the Mechtech SDRC Series Roll Crusher in action through our full 3D video, showcasing its design, crushing mechanism, and engineered approach to efficient material reduction.
Play Video
Got questions? We’ve got answers. If you have some other questions, feel free to send us an email to sales@mechtechengg.com
Mechtech Roll Crushers are suitable for crushing friable materials such as coal, salt, clay, and bauxite, delivering controlled size reduction and uniform product output.
The adjustable crushing gap allows operators to control the final particle size according to specific application requirements and material characteristics.
Yes, the integrated tramp release mechanism allows uncrushable materials to pass through, helping protect critical components and minimize potential equipment damage.
Mechtech offers installation, maintenance, and operator training services to support reliable equipment operation, improve performance, and minimize downtime.
